DC-to-AC Inverters: Off-Grid, Grid-tie, Grid-tie with Batteries



Inverters change the DC (Direct Current) electricity produced by PV solar panels into the more common AC (Alternating Current) house current electricity for normal household appliances and devices. As shown below, we offer several types of inverters to include grid-tied, off-grid and grid-tie with battery backup for the complete energy independence.

Off-Grid Inverters

Off Grid
SOLAR OFF-GRID POWER

About residential off-grid systems

A basic off-grid system consists of a renewable energy source, which generates DC power, a battery bank that stores the DC power, and an inverter. This inverter (made by Xantrex) is the center of a renewable energy system, converting DC power into clean and reliable AC electricity for you and your family's needs.

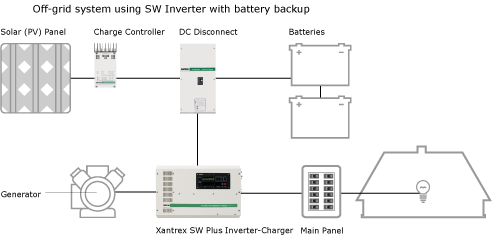

The off-grid system pictured here is a solar-electric hybrid system that offers additional automatic features. It consists of solar panels, a battery bank, a Xantrex SW Plus Inverter/Charger, a charge controller that manages battery charging, and a generator.

When the sun is up, the solar panels generate power to charge batteries and provide electricity. At night, the Xantrex inverter/charger automatically runs your electrical equipment from your battery bank. The generator provides additional back-up battery charging capability for extended periods of cloudy weather. The Xantrex inverter/charger can automatically start the generator and initiate a recharge cycle when the battery bank is depleted, or a load is too large for the batteries to support independently. You can even have a connection to the grid should you want to use utility power.

R Powr Panel 4 kw w/ 2 24 volt Outback FX2000 Inverters
The R Powr panel is a fully integrated power conversion center. The core of the panel consists of one or two Outback FX2000 inverters. On either side of the inverter(s) are the roomy Outback AC and DC power centers with appropriate input, output, and bypass breaker assemblies. All components are pre-wired and mounted on the robust, powder-coated Outback Mounting Plate, with plenty of mounting holes for an easy on-site installation. R Powr assemblies are ETL listed and custom-built for each customer. R Powr panels are fully wired, and require a minimum of installation time and small parts on-site. They can be used for grid-tied or stand-alone systems, providing a smooth installation with a minimum of parts-run interruptions. The DC box has ample room for additional breakers, such as the Ground Fault Protector required for residential-mounted PV arrays, or for DC loads, and DC charging equipment such as a wind turbine or a future PV expansion. The AC box is also sized large enough to handle additional breakers. R Powr panels include the incredibly useful Mate, and the Hub that lets the brainy Mate communicate with all the inverters and charge controls (and your PC too if desired). R Powr panels consist of the following components mounted, wired, and tested on the Outback 36”H x 50”W mounting plate:
  • OutBack FX2000 inverter(s) 24 or 48VDC input
  • Outback DC Cover and both AC/DC conduit adapters
  • Outback DC Center w/ Inverter disconnect breaker(s) and PV input/output breakers
  • Outback AC Center w/ Inverter 60A bypass assemassembly(s)
  • OutBack MX60, 60A MPPT charge controller
  • OutBack Mate (metering and inverter control)
  • OutBack Hub (for communication between OutBack components)

R Powr Panel 4 kw w/ 2 24 volt Outback FX2000 Inverters
The DR series combines the best prices, versatility, ease of use, efficiency and quality. All DR inverters come equipped with high-performance battery chargers and transfer switches as standard equipment. They are available in a variety of 12- or 24-volt models.

DR-series inverters are conventional, high-efficiency modified sine wave inverters. All models are Electrical Testing and Lab-approved to UL specifications. These inverters will automatically protect themselves from overload, high temperatures, high or low battery voltages. Fan cooling is temperature regulated, low-battery cut-out is standard, and powerful three-stage adjustable battery charger and 30 amp transfer switch built in for use with external AC power sources like the utility or a generator.

All models are designed for wall mounting with conventional 16-inch stud spacing. All Xantrex inverters carry a two-year mfr.'s warranty. USA.

Xantrex DR2412 Inverter, 2400 Watts, 12V
The DR series combines the best prices, versatility, ease of use, efficiency and quality. All DR inverters come equipped with high-performance battery chargers and transfer switches as standard equipment. They are available in a variety of 12- or 24-volt models.

DR-series inverters are conventional, high-efficiency modified sine wave inverters. All models are Electrical Testing and Lab-approved to UL specifications. These inverters will automatically protect themselves from overload, high temperatures, high or low battery voltages. Fan cooling is temperature regulated, low-battery cut-out is standard, and powerful three-stage adjustable battery charger and 30 amp transfer switch built in for use with external AC power sources like the utility or a generator.

All models are designed for wall mounting with conventional 16-inch stud spacing. All Xantrex inverters carry a two-year mfr.'s warranty. USA.

Xantrex SW3024 Inverter, 24V, 220 VAC 50Hz output
The Xantrex sine wave inverter/chargers do it all. They can be conventional remote inverters, uninterruptible power supplies, generator managers, or allow for utility intertie- they can do any, and sometimes all of these simultaneously, and with up to 94% efficiency!

These sophisticated generator management systems work in all operation modes including auto-start by battery voltage or time, number of start attempts, cranking and warm-up time, automatic battery charging, maximum generator load management, auto low-voltage disconnect, auto shut-off, and more.

SW inverters are stackable in series for 240 volts AC three wire splitable output at double the rated wattage. SW inverters measure 22.5" x 15.25" x 9" and are designed for wall mounting with conventional 16-inch stud spacing. They are also available prewired into Xantrex Power Panel Systems. All models in the SW series are Electrical Testing Lab approved to UL specifications. Two-year manufacturer's warranty. USA.

Samlex Pure Sine Wave Inverters
Just the thing for smaller off-the-grid homes, these mid-sized 600 and 1000 watt inverters deliver clean sine wave power at an affordable price. Available in either 12v or 24v input, these compact lightweight units feature overload protection, thermostatic fan, low battery alarm, warning lights, on/off switch and automatic shutdown. Output is a pair of 3-prong plugs on front, input is #2 gauge terminals on back.

The 600w unit will surge to 1000 watts, is 13.2" x 9.3" x 3.3", weighs 6.6 lbs.

The 1000w unit will surge to 2000 watts, is 15.5" x 9.3" x 3.3", weighs 8.8 lbs.

One-year mfr.'s warranty. Taiwan.

Wagan Plug-In Power Inverter
This series of incredibly handy Wagan inverters are great for recharging laptops, PDAs, cameras, cell phones or any small AC appliance up to the wattage rating of the inverter. Plugs into any standard 12-volt lighter socket. Overload, short-circuit and low-battery protected. Shuts off at 10 volts. Surges to about twice the rated power. Single 3-prong outlet.

Weight:
75-watt, 6.4 oz.
110-watt, 9.6 oz.
150-watt, 14.5 oz.

One-year mfg. warranty. China.

Xantrex SW Plus Series Inverters
New choices and lower prices for off-grid sine wave power. Xantrex has intro¬duced a new and improved version of its sine wave inverter technology. Available in 24- or 48-volt versions, the SWP-series offers continuous AC power output at 2.5, 4.0 and 5.5 kVA. This highly capable inverter can be used for independent households or to provide automatic backup power when utility power fails. Peak efficiency is 95, and search mode power is under 2 watts! One of the most welcome improvements with the SW Plus is that all inverter programming is held in non-volatile memory so customized charge or control settings won't be lost if DC power is interrupted. The Plus series is also FCC Part B compliant, which means less potential interference with radio and telephone equipment.

Options include matching AC and DC conduit boxes for code-compliant installations. The AC conduit box also contains bypass/disconnect circuit breakers. With the optional Generator Start Module, it will automatically start and stop any remote-start-capable generator based on customer needs. The optional Auxiliary Load Module will automatically turn up to three external items on or off based on battery voltage. An Inverter Control Module w/ 25' cable can be installed for remote operation, monitoring or connection to a PC. Powder-coated steel enclosure rated for indoor use. 120VAC/60hz output. 22.5"W x 15"H x 9"D. CSA-listed to UL1741. Two-year mfg. warranty. USA.

Go Power Modified Sine-Wave Inverters
These Go Power modified sine-wave inverters let you run standard AC appliances wherever and whenever you need. Silent, lightweight and simple to use, these inverters bring electricity to your RV, boat, car or even your home. Simply plug the item you wish to run into one of the AC receptacles, and you can run your AC load right off your batteries day or night without a generator. All six models have an on-off switch, cooling fan, thermal and overload protection as well as dual AC outlets. One-year mfg. warranty.

The 300-watt model is the easy solution for small power needs. Compact, lightweight and portable! Cooling fan runs continuously. On/off switch, 400-watt surge, cooling fan, thermal and overload protection, and dual AC outlets.

The 600-watt model includes the same features as the 300-watt and is the perfect inverter for your middle-range power needs — powerful yet economical. Great for lights, drills and blenders. 860-watt surge.

Run your standard AC appliances wherever you travel with these silent, lightweight and simple-to-use inverters! Designed for RVs, campers, long-haul trucks, boats, cars, mobile offices, service vehicles and emergency back-up power. The Go Power 1,000- watt inverter has a digital display. The 1,750-watt is a heavy-duty inverter designed to run high-wattage appliances. Both inverters come with on/off switches, cooling fans, thermal and overload protection, and dual AC outlets. 2,500-watt is capable of being hard wired with optional accessory kit.

Go Power Sine-Wave Inverters
Some appliances just aren't happy with anything less than pure, clean sine-wave power. Video and audio equipment are often a problem when using modified sine-wave inverters. Here's a selection of high-quality, pure sine-wave inverters that all have dual 3-prong outlets for output, on/off switches, power-on indicator lights, and feature automatic overload, overheat, high- or low-battery shutdown and thermostatically controlled cooling fans. Pure sine-wave inverters arc perfect for appliances that demand a clean, pure source of AC power. With sine-wave power, your audio, video and electronic equipment will run without buzzing or humming, and appliances like microwaves will run more efficiently. Available in 12V or 24V. Two-year mfg. warranty.

Xantrex SW4024 Sine Wave Inverters, 4KW, 24V
The Xantrex sine wave inverter/chargers do it all. They can be conventional remote inverters, uninterruptible power supplies, generator managers, or allow for utility intertie- they can do any, and sometimes all of these simultaneously, and with up to 94% efficiency!

These sophisticated generator management systems work in all operation modes including auto-start by battery voltage or time, number of start attempts, cranking and warm-up time, automatic battery charging, maximum generator load management, auto low-voltage disconnect, auto shut-off, and more.

SW inverters are stackable in series for 240 volts AC three wire splitable output at double the rated wattage. SW inverters measure 22.5" x 15.25" x 9" and are designed for wall mounting with conventional 16-inch stud spacing. They are also available prewired into Xantrex Power Panel Systems. All models in the SW series are Electrical Testing Lab approved to UL specifications. Two-year manufacturer's warranty. USA.

Xantrex SW5548 Sine Wave Inverter, 5.5KW, 48V
The Xantrex sine wave inverter/chargers do it all. They can be conventional remote inverters, uninterruptible power supplies, generator managers, or allow for utility intertie- they can do any, and sometimes all of these simultaneously, and with up to 94% efficiency!

These sophisticated generator management systems work in all operation modes including auto-start by battery voltage or time, number of start attempts, cranking and warm-up time, automatic battery charging, maximum generator load management, auto low-voltage disconnect, auto shut-off, and more.

SW inverters are stackable in series for 240 volts AC three wire splitable output at double the rated wattage. SW inverters measure 22.5" x 15.25" x 9" and are designed for wall mounting with conventional 16-inch stud spacing. They are also available prewired into Xantrex Power Panel Systems. All models in the SW series are Electrical Testing Lab approved to UL specifications. Two-year manufacturer's warranty. USA.

Xantrex PS2524 Inverter 2500W, 24V
Want a little more from your PS? With the optional LCD control panel you can change the basic programming just like on the SW-series, make changes to the standard battery charging parameters, or most of the other features of the SW-series.

Note: The PS-series will not do utility intertie.

PS-series inverters can be stacked in series (240VAC output), or in parallel (double the 120VAC output). Most SW options fit the PS including remote control panel, communications adapter, and stacking or paralleling kits. Only the conduit box is unique to the PS, as this inverter is slightly slimmer. European versions delivering 230V/50Hz are available by special order with the same pricing. UL approved, two-year mfr's warranty. USA.

Exeltech Xp 1100/12v Sine Inverter
The XP series features better performance, smaller size, and larger wattage models. Made in America, these lightweight, reliable units are a great choice for modest-sized clean power needs. Sine wave inverters will run any sensitive load, such as audio, video, satellite, and test equipment without buzzing or interference. Output distortion is under 2% maximum, and frequency is controlled to ±0.1%. Inverters automatically protect themselves from over and under voltage, overtemperature, and shorted output. Efficiency runs 85% to 90% over normal operation range. One-year mfr.'s warranty on all models. USA.
  • Input Voltage: 12 volts DC
  • * You can special Order most any voltage you like by calling our technical department at 1-800-919-2400
  • Output Voltage: 117 volts AC true RMS ±5%
  • Continuous Output: 1,100 watts
  • Surge Capacity: 2,200 watts
  • Idle Current: 20 watts
  • Average Efficiency: 87% at full-rated power
  • Recommended Fusing: 200 amp
  • Dimensions: 13.8"" x 7.7"" x 3.6""
  • Weight: 10 lb.

Exeltech Xp 1100/24v Sine Inverter

Xantrex DR1512 Inverter, 1500 Watts, 12V
The DR series combines the best prices, versatility, ease of use, efficiency and quality. All DR inverters come equipped with high-performance battery chargers and transfer switches as standard equipment. They are available in a variety of 12- or 24-volt models.

DR-series inverters are conventional, high-efficiency modified sine wave inverters. All models are Electrical Testing and Lab-approved to UL specifications. These inverters will automatically protect themselves from overload, high temperatures, high or low battery voltages. Fan cooling is temperature regulated, low-battery cut-out is standard, and powerful three-stage adjustable battery charger and 30 amp transfer switch built in for use with external AC power sources like the utility or a generator.

All models are designed for wall mounting with conventional 16-inch stud spacing. All Xantrex inverters carry a two-year mfr.'s warranty. USA.

Xantrex SW4048 Sine Wave Inverter 4KW, 48V
The Xantrex sine wave inverter/chargers do it all. They can be conventional remote inverters, uninterruptible power supplies, generator managers, or allow for utility intertie- they can do any, and sometimes all of these simultaneously, and with up to 94% efficiency!

These sophisticated generator management systems work in all operation modes including auto-start by battery voltage or time, number of start attempts, cranking and warm-up time, automatic battery charging, maximum generator load management, auto low-voltage disconnect, auto shut-off, and more.

SW inverters are stackable in series for 240 volts AC three wire splitable output at double the rated wattage. SW inverters measure 22.5" x 15.25" x 9" and are designed for wall mounting with conventional 16-inch stud spacing. They are also available prewired into Trace Power Panel Systems. All models in the SW series are Electrical Testing Lab approved to UL specifications. Two-year manufacturer's warranty. USA.

Wagan 150-Watt Inverter
Wagan offers an extensive line of 12-volt inverters at attractive prices. You won't find built-in battery chargers or automatic transfer switches on these no-frills inverters. You will find dependable modified sinewave output, honest output ratings, modest no-load power use, and reasonable prices. Features on all models include automatic overload protection, input short circuit protection, and a one-year mfg. warranty. Taiwan.

A larger portable choice, this inverter can run desktop computers, medium-sized TV's, battery chargers, or smaller appliances. Delivers 150 watts continuously or up to 500 watts surge. 30" power cord, on/off switch, and dual AC outlets.

Wagan Sinewave Inverter 150-WattXantrex DR2424 Inverter, 2400 Watts, 24V

Xantrex DR3624 Inverter, 3600 Watts, 24VXantrex RC8/ 50 RemoteWagan 400-Watt

InverterWagan 700-Watt InverterWagan Sinewave Inverter 300-Watticon Exeltech XP 1100 Sinewave

Inverter (Specify Voltage)

Xantrex UX1112 Inverter, 1100 Watt, 12 V

The UX-series models are available with 600- or 1,100-watt continuous output, and offer 3-stage automatic battery charging options. Included with the ""SB"" charger option is a 30-amp transfer switch to automatically switch incoming generator or utility power to the inverter output terminals.

All UX-series invertesr are 12-volt input, and feature the usual rugged Xantrex quality. Standard features include powder-coated chassis, stainless fasteners, conformal-coated circuit boards, gold-plated connectors, 90% efficiency, minicule power use on standby, automatic high- and low-battery cutout, automatic high-temp cutout, and overload shutdown. Can be wall or shelf mounted. AC power terminations are protected inside chassis. 230V/50Hz foreign models available by special order. Two-year Mfr.'s warranty. USA.

Grid-Tie Inverters with Batteries

R Powr Panel 4 kw w/ 2 24 volt Outback FX2000 Inverters


Outback PS1 (GVFX3648) Intertie Inverter

Inverter Accessories

FX2000 DC Wiring Cover
Outback FX2000 DC Cover A cast aluminum cover for the DC cable connections and other accessories in the DC wiring area on top of the inverter. Required for a NEC compliant installation. USA.

FX2000 DC Conduit Adapter
Outback FX2000 DC Conduit Adapter An aluminum conduit adapter required when mounting the FX2000 to an Outback DC Center, or to a 2" conduit. Required for a NEC compliant installation. USA.

FX2000 AC Adapter
Outback FX2000 AC Adapter A cast aluminum AC wiring compartment extension. Provides a 2" conduit adapter, two 1" conduit knockouts, and an AC outlet knockout. Required when mounting an FX2000 to an Outback AC Center. USA.

OutBack Terminal Bus Bar Option
The OutBack AC enclosures come with all the bus bars most folks will need, but for the creative types, here you go. Insolated bus bars, with 12 holes. USA.

OutBack FX-Series Adapter Kit
The easy way to order what every inverter installation needs. The FX Adapter Kit contains one each of the DC Conduit Adapter and AC Adapter described below. Order one Adapter Kit for each FX-series inverter, and you’re covered.

Xantrex SW/PS-Series Remote Control
Xantrex SW-Series Inverter Remote Control Panel Option

Offers a complete LCD control panel with all controls, indicators, and display. Includes 25 feet of cable. Required for any field adjustment of control settings on PS units. USA.

SMA Sunny Boy Inverter Power Line Carrier Module
SMA is a high-quality German manufacturer that has been making photovoltaic-powered utility intertie inverters since 1985. SMA has put more than 50,000 units into intertie service, primarily in the green German and European markets. The direct-intertie Sunny Boy series is their third-generation design. These are modular string inverters using 6 to 22 modules in a high-voltage string wired in series, which eliminates the need for combiner boxes and large wire. Maximum power point tracking delivers the highest possible wattage under all conditions. Maximum inverter efficiency and safety have been the primary design goals during development of all SMA products.

All Sunny Boy inverters feature powder-coated, stainless steel, outdoor-rated, NEMA 4 cases that can be wall mounted right outside with the array. Higher temperatures will cause limited output or automatic shut-off to protect the inverter. Ground-fault protection is built into each inverter.

Grid-Tie Inverters

SOLAR GRID-TIE POWER

About residential grid-tie systems

Grid Tie

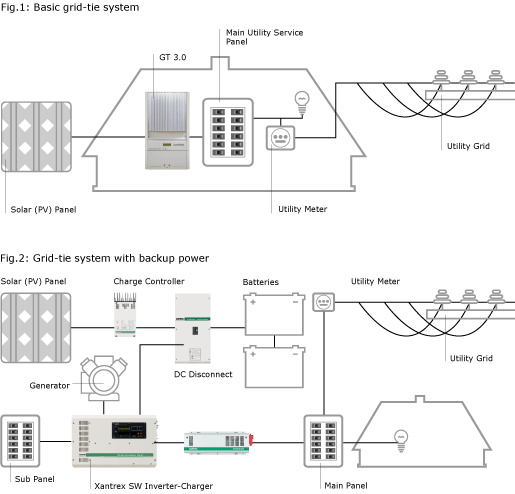

A basic grid-tie system, as shown on the right, is comprised of of solar cells and a grid-tie inverter (this one being made by Xantrex). Solar cells take the Sun's energy and turn it into DC electricity. The inverter turns the DC electricity generated by the solar cells into utility grade AC power for use in your home or business.

To enjoy the benefits of green power production and protect your family from blackouts, you can choose a grid-tie system with batteries and a generator, as shown in ___ 2. When utility power fails, your Xantrex power system will automatically provide power to run your home security system, refrigerator, lights, computer and other vital appliances.

A grid-tie system is an effective way to reduce your dependence on utility power, lower your electric bills, increase green energy production and improve the environment.

R Powr Panel 4 kw w/ 2 24 volt Outback FX2000 Inverters
The R Powr panel is a fully integrated power conversion center. The core of the panel consists of one or two Outback FX2000 inverters. On either side of the inverter(s) are the roomy Outback AC and DC power centers with appropriate input, output, and bypass breaker assemblies. All components are pre-wired and mounted on the robust, powder-coated Outback Mounting Plate, with plenty of mounting holes for an easy on-site installation. R Powr assemblies are ETL listed and custom-built for each customer. R Powr panels are fully wired, and require a minimum of installation time and small parts on-site. They can be used for grid-tied or stand-alone systems, providing a smooth installation with a minimum of parts-run interruptions. The DC box has ample room for additional breakers, such as the Ground Fault Protector required for residential-mounted PV arrays, or for DC loads, and DC charging equipment such as a wind turbine or a future PV expansion. The AC box is also sized large enough to handle additional breakers. R Powr panels include the incredibly useful Mate, and the Hub that lets the brainy Mate communicate with all the inverters and charge controls (and your PC too if desired). R Powr panels consist of the following components mounted, wired, and tested on the Outback 36”H x 50”W mounting plate:
  • OutBack FX2000 inverter(s) 24 or 48VDC input
  • Outback DC Cover and both AC/DC conduit adapters
  • Outback DC Center w/ Inverter disconnect breaker(s) and PV input/output breakers
  • Outback AC Center w/ Inverter 60A bypass assemassembly(s)
  • OutBack MX60, 60A MPPT charge controller
  • OutBack Mate (metering and inverter control)
  • OutBack Hub (for communication between OutBack components)

SMA (Sunny Boy) Intertie Inverter 1800U Standard
From the worlds most experienced utility-intertie inverter manufacturer. SMA is a high-quality German manufacturer with more than 80,000 utility intertie inverters in service since 1996. The direct-intertie Sunny Boy series is a third-generation design. These are high-voltage input inverters that use series-strings of PV modules. This eliminates the need for large wire and greatly eases long-distance Sunnv Bov 2500 transmission. Maximum power point tracking delivers the highest possible wattage under all conditions. All Sunny Boy inverters feature powder-coated, stainless steel, outdoor-rated NEMA 4 cases that can be mounted inside or outside, and will deliver full-power operation at temperatures up to 60°C 140°F. Ground-fault protection is built into each inverter, and five-year warranties are standard.

Sunny Boy offers several closely related models at 700, 1,100, 1,800 and 2,500 (pictured)watts. All models feature the best of high-quality German engineering. High-efficiency, redundant processors, easy data communications, maximum power point tracking, an excellent reliability record, and powder-coated, stainless steel, outdoor-rated boxes are only a few of the quality design features. Sunny Boy inverters require high-voltage series-strings of PV modules. The number of modules varies with inverter model, PV modules used, climate in which they'll be installed, and the owner's budget and/or output requirements. Smaller inverters require shorter, lower-voltage PV strings. Bigger inverters require longer strings. Call for details.

All Sunny Boy installations need the hi-volt DC disconnect listed below. The lightning protection is optional, but highly recommended. All Sunny Boy inverters are warranted by the manufacturer for 5 years. Germany.


SMA (Sunny Boy) Intertie Inverter 1800U w/ Display icon
From the worlds most experienced utility-intertie inverter manufacturer. SMA is a high-quality German manufacturer with more than 80,000 utility intertie inverters in service since 1996. The direct-intertie Sunny Boy series is a third-generation design. These are high-voltage input inverters that use series-strings of PV modules. This eliminates the need for large wire and greatly eases long-distance Sunnv Bov 2500 transmission. Maximum power point tracking delivers the highest possible wattage under all conditions. All Sunny Boy inverters feature powder-coated, stainless steel, outdoor-rated NEMA 4 cases that can be mounted inside or outside, and will deliver full-power operation at temperatures up to 60°C 140°F. Ground-fault protection is built into each inverter, and five-year warranties are standard.

Sunny Boy offers several closely related models at 700, 1,100, 1,800 and 2,500 (pictured)watts. All models feature the best of high-quality German engineering. High-efficiency, redundant processors, easy data communications, maximum power point tracking, an excellent reliability record, and powder-coated, stainless steel, outdoor-rated boxes are only a few of the quality design features. Sunny Boy inverters require high-voltage series-strings of PV modules. The number of modules varies with inverter model, PV modules used, climate in which they'll be installed, and the owner's budget and/or output requirements. Smaller inverters require shorter, lower-voltage PV strings. Bigger inverters require longer strings. Call for details.

All Sunny Boy installations need the hi-volt DC disconnect listed below. The lightning protection is optional, but highly recommended. All Sunny Boy inverters are warranted by the manufacturer for 5 years. Germany.

Sharp 3500 Sunvista Inverter
The Sharp intertie inverter has proven itself over several years and tens of thousands of Japanese installations. We're pleased to introduce it to North America. Offering up to 3,500 watts of output, with maximum power point tracking, the Sharp is unique in that it uses three separate input channels. Each channel operates independently, making the most of the array attached to that particular input. PV arrays can face different directions, with different numbers or even brands or sizes of PV modules to make the best use of available space, and it will still harvest maximum output from each module. All modules within a single input channel must match, and all must face the same direction. This inverter also lends itself to starting with a smaller system with lots of room for future expansion. With most 24 volt-nominal modules, strings of 5 to 7 modules are acceptable. With 12 volt-nominal modules, strings of 9 to 14 are usually acceptable.

The light gray Nema 3R case can be mounted indoors or outdoors. Inverter output lands on a 20A/240V circuit breaker in your main breaker panel. It has automatic active cooling fans to allow full power output under very hot conditions up to 105 degrees F. During even hotter conditions it will limit power output to the most efficient setting possible without overheating. An interior wall-mounted LCD display is included. It shows instantaneous output, cumulative output for one year, and total CO2 abatement. (A great feature for bragging rights.)

UL and IEEE approved. Requires a high-voltage DC Disconnect between PV arrays and inverter for electric code compliance. Lightning protection is optional, but recommended. Size is 23.6"W x 17.7"H x 7.6"D, weighs 62 lbs. 5-yr. mfr.'s warranty. Japan.

SMA (Sunny Boy) Intertie Inverter 1100U w/ Display
From the world s most experienced utility-intertie inverter manufacturer. SMA is a high-quality German manufacturer with more than 80,000 utility intertie inverters in service since 1996. The direct-intertie Sunny Boy series is a third-generation design. These are high-voltage input inverters that use series-strings of PV modules. This eliminates the need for large wire and greatly eases long-distance Sunnv Bov 2500 transmission. Maximum power point tracking delivers the highest possible wattage under all conditions. All Sunny Boy inverters feature powder-coated, stainless steel, outdoor-rated NEMA 4 cases that can be mounted inside or outside, and will deliver full-power operation at temperatures up to 60°C 140°F. Ground-fault protection is built into each inverter, and five-year warranties are standard.

Sunny Boy offers several closely related models at 700, 1,100, 1,800 and 2,500 (pictured) watts. All models feature the best of high-quality German engineering. High-efficiency, redundant processors, easy data communications, maximum power point tracking, an excellent reliability record, and powder-coated, stainless steel, outdoor-rated boxes are only a few of the quality design features. Sunny Boy inverters require high-voltage series-strings of PV modules. The number of modules varies with inverter model, PV modules used, climate in which they'll be installed, and the owner's budget and/or output requirements. Smaller inverters require shorter, lower-voltage PV strings. Bigger inverters require longer strings. Call for details.

All Sunny Boy installations need the hi-volt DC disconnect listed below. The lightning protection is optional, but highly recommended. All Sunny Boy inverters are warranted by the manufacturer for 5 years. Germany.


SMA (Sunny Boy) Intertie Inverter 700U w/ Display
icon

Xantrex GT 3.0 Intertie Inverter
This direct-intertie delivers superior PV energy harvesting, high reliability, easy installation and an attractive cost. It has been extensively laboratory and field tested before release to ensure complete debugging. An input voltage range of 195 to 550 volts allows more flexible system sizing and helps to make use of marginal sunlight. The Maximum Power Point Tracking software features rapid response to make the best of cloudy weather. A large aluminum heat sink ensures excellent thermal performance. It features an easy access wiring box with an NEC-compliant integrated PV/utility disconnect, so only the NEMA 3R outdoor-rated box is needed. The built-in display cycles through instant, daily and lifetime energy production, utility voltage and frequency, online selling time, any fault messages and other customized screens. Also included is an isolated RS232 port and two RJ45 (Ethernet) communications ports. No additional cards or other gizmos are needed to connect to a PC and The Viewer software program can be downloaded for free. Size is 28.5" x 15.9"x 5.7", weighs 45 lb. CSA listed to UL 1741, FCC Class B. Five-year mfg. warranty. China.

Beacon Power M5 Inverter
Rated at a healthy 5,000 watts, this single compact outdoor-rated unit for solar-electric intertie with battery backup converts PV energy to conventional AC power. If extra PV energy is available, it will be credited to your utility meter. During utility outages, the M5 will instantly switch to battery power to keep the furnace and fridge running. Three ground fault-protected 50-amp PV input breakers with the Maximum Power Point Tracking control will extract the maximum amount of energy. The optional PC-based Smart Power Monitor lets you track performance parameters and more. Call for module equipment requirements. UL 1741 certified. Size is 42"H x 16"W x 10"D. Five-year mfg. warranty. USA.

Sunny Boy 6000U Intertie Invertericon
From the worlds most experienced utility-intertie inverter manufacturer. SMA is a high-quality German manufacturer with more than 80,000 utility intertie inverters in service since 1996. The direct-intertie Sunny Boy series is a third-generation design. These are high-voltage input inverters that use series-strings of PV modules. This eliminates the need for large wire and greatly eases long-distance Sunnv Bov 2500 transmission. Maximum power point tracking delivers the highest possible wattage under all conditions. All Sunny Boy inverters feature powder-coated, stainless steel, outdoor-rated NEMA 4 cases that can be mounted inside or outside, and will deliver full-power operation at temperatures up to 60°C 140°F. Ground-fault protection is built into each inverter, and five-year warranties are standard.

Sunny Boy offers several closely related models at 700, 1,100, 1,800 and 2,500 (pictured)watts. All models feature the best of high-quality German engineering. High-efficiency, redundant processors, easy data communications, maximum power point tracking, an excellent reliability record, and powder-coated, stainless steel, outdoor-rated boxes are only a few of the quality design features. Sunny Boy inverters require high-voltage series-strings of PV modules. The number of modules varies with inverter model, PV modules used, climate in which they'll be installed, and the owner's budget and/or output requirements. Smaller inverters require shorter, lower-voltage PV strings. Bigger inverters require longer strings. Call for details.

All Sunny Boy installations need the hi-volt DC disconnect listed below. The lightning protection is optional, but highly recommended. All Sunny Boy inverters are warranted by the manufacturer for 5 years. Germany.

Fronius IG2000 Intertie Invertericon
Fronius is one of the largest suppliers of direct-intertie inverters in Europe for good reason. The feature advanced high-frequency technology, which delivers high-efficiency, precision maximum power point tracking and a lighter weight design. Active cooling allows full power from -4° to 122°F, and a wide voltage input range of 150 to 450 volts permits highly flexible array sizing. The backlit LCD display is standars and shows instant AC output, daily output, output since installation, CO2 emissions avoided, and much more, including fault displays for quich repairs. The integrated DC and AC disconnects mean a clean installation with less hardware on the wall. TheNEMA 3R enclosure can be mounted outside or inside. Expansion slots allow future upgrades or remote displays. There are data collection options for those who want to connect to their PC. The IG2000 model delivers a nominal 1,800 watts of output, the IG3000 delivers 2,500 watts. Both are 240-volt and land on a 2-pole 15A circuit breaker. UL 1741 approved. 18.5" x 16.5" x 8.8", weighs 26 lbs. Five year mfg. warranty. Germany

Fronius IG3000 Intertie Inverter


Outback PS1 (GVFX3648) Intertie Invertericon
The folks at OutBack have done it again. Designed with an emphasis on performance, case of installation and low maintenance, the PSI adds uninterrupted backup power to intertied solar. They've bundled their top performing FX sinewavc inverter and their MX60 MPPT controller in a factory-wired, ETL listed, weatherproof assembly. Maximum solar input of 3300 watts at up to 72 volts nominal. PSI enclosure includes the AC bypass, 50 amp house feed for your "emergency" loads, PV array combiner breakers, MX60 battery disconnect and the code-required Ground Fault Protection. 31.3" x 17.25" x 12.9". Shipping weight 120 Ibs.

Fronius Intertie Invertericon Fronius IG5000 Inverter


SMA (Sunny Boy) 2500U Intertie Inverter

SMA (Sunny Boy) Intertie Inverter 2500 w/ Display

Xantrex Sun Tie ST-XR1000 Intertie Inverter
Xantrex e Engineering's new utility intertie ST-series inverters deliver PV power directly to your home or business AC electric system without the use of batteries. Any available PV energy is instantly and efficiently converted to 240VAC, offsetting utility power use. The all-in-one ST inverter design includes NEC-required disconnects, DC and AC circuit breakers, lightning arrestor, and a built-in LCD display that shows system status, current performance, and daily cumulative power production. Maximum power point tracking technology is used to gain the best output from your PV array under any conditions. The solid-state inverter delivers 90% to 94% efficiency.
The protective rain shield, as pictured, is an option for all models, and is a requirement for outdoor installations. Multiple inverters, of different capacities, can be wired in parallel. Each operates independently

Xantrex Sun Tie ST-XR1500 Intertie Inverter w/PVGFP and combiner

Trace Sun Tie ST-XR2000 Intertie Inverter

Trace Engineering's new utility intertie ST-series inverters deliver PV power directly to your home or business AC electric system without the use of batteries. Any available PV energy is instantly and efficiently converted to 240VAC, offsetting utility power use. The all-in-one ST inverter design includes NEC-required disconnects, DC and AC circuit breakers, lightning arrestor, and a built-in LCD display that shows system status, current performance, and daily cumulative power production. Maximum power point tracking technology is used to gain the best output from your PV array under any conditions. The solid-state inverter delivers 90% to 94% efficiency.

The protective rain shield, as pictured, is an option for all models, and is a requirement for outdoor installations. Multiple inverters, of different capacities, can be wired in parallel. Each operates independently.
